Purpose
Usage

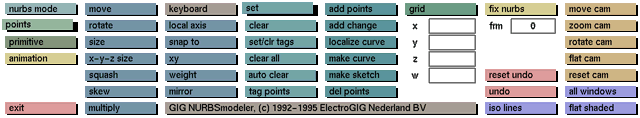

Click the set button to activate it:
To activate points, click on the points with the left mouse button (selected
points are yellow). If several points are on the same position, then all points
are selected, but if the <Shift> key is pressed, only the first point
will be selected. Press <Ctrl> to select last point.
To activate a curve, click on the control polygon between two points (all
points will be selected).
To activate a grid, click with the mouse on one of the lines from the grid
(selected grid will be black).
To activate the local axis, click on the local axis.
The active part can now be transformed using the transformation functions.
Comments
A tag name can be assigned to the active control points using the tag points
button. Tag names help you to easily select parts for transformation.
See also
clear, clear all,
auto clear, tag points
